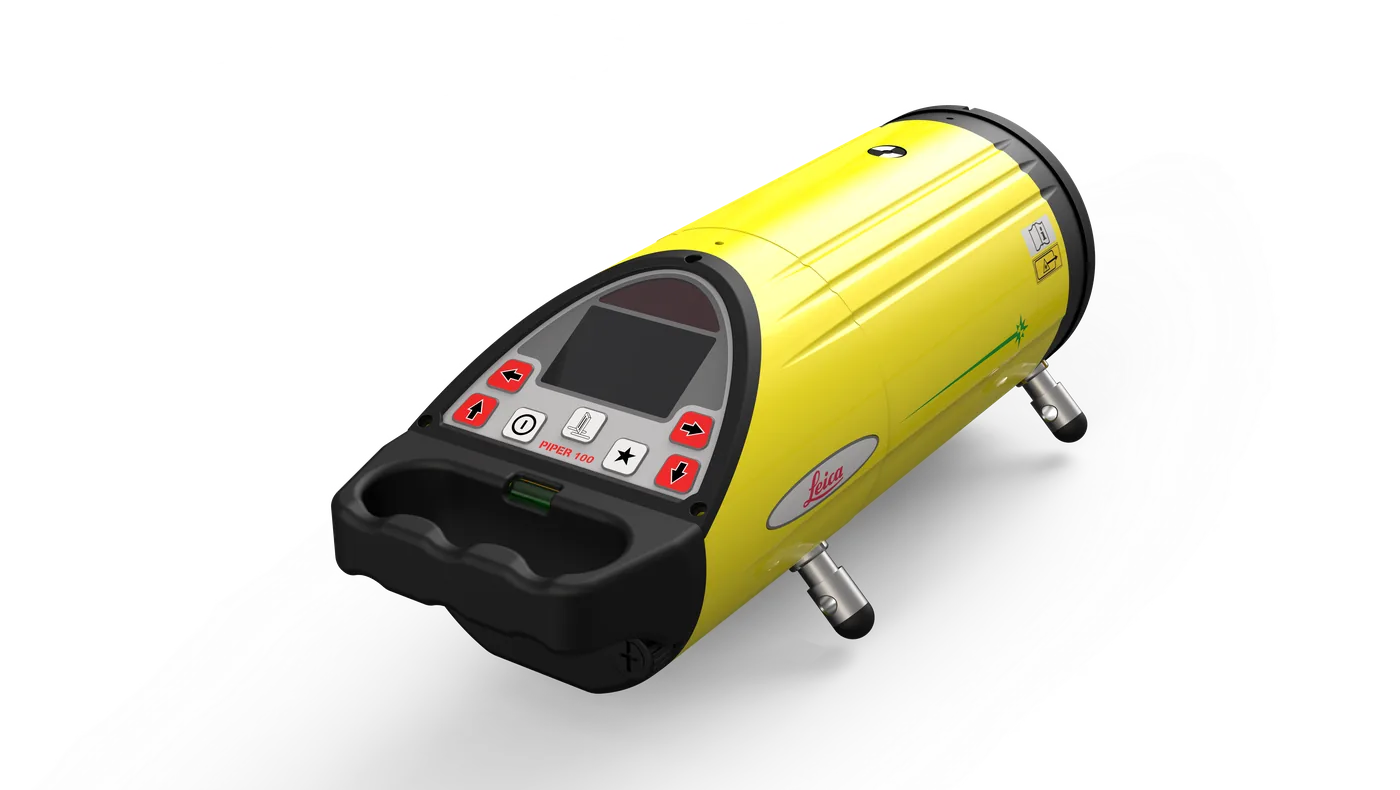

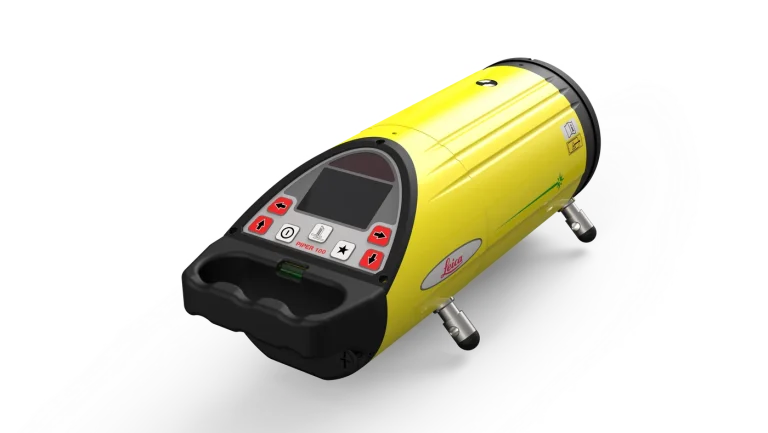

Available in red-beam or high-visibility green-beam versions, the Piper 100 delivers exceptional precision and rugged reliability, whether inside pipes, manholes or above ground.
Two Beam Options:
– Red Beam Version (wave length 635 nm). The classic version offering high accuracy, proven performance in standard lighting and pipeline applications.
– Green Beam Version (wave length 520 nm). Offers up to 4× better visibility than red in bright conditions, enabling better performance at longer distances and in high-ambient-light jobsites.
Which version to choose?
– Choose the Red Beam version if most of your work is in standard ambient light conditions, inside pipes or manholes, and you’re already comfortable with the red-beam range and visibility.
– Choose the Green Beam version when you work in high-ambient-light conditions (e.g., above-ground trenches, bright daylight, reflective environments), or when maximum visibility and range are critical for your job site.
Key features
- Compact design fits inside a 100 mm (4-inch) pipe for invert, pipe, manhole, and over-top setups.
- Automatic self-levelling and grade compensation with a wide grade range (-10% to +25%) and roll tolerance (±3°).
- Rugged cast-aluminium housing, fully waterproof (IP X8) for tough site conditions.
- Working range up to 200 m (650 ft) in line-of-sight environments.

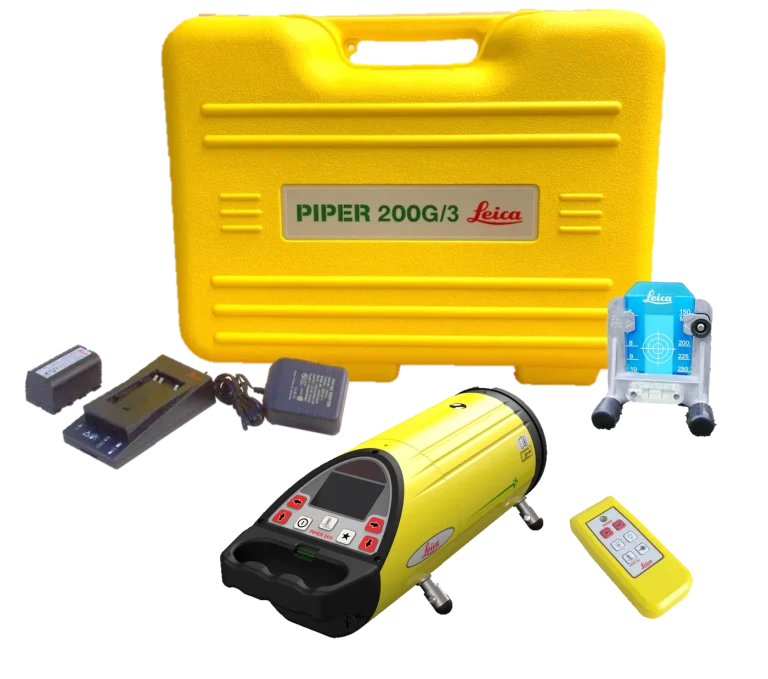

- Complete kit includes remote control, target, Li-Ion battery, charger, and self-centering feet.
- Supplied by Geoxpert fully configured, calibrated, and supported for turnkey deployment.
