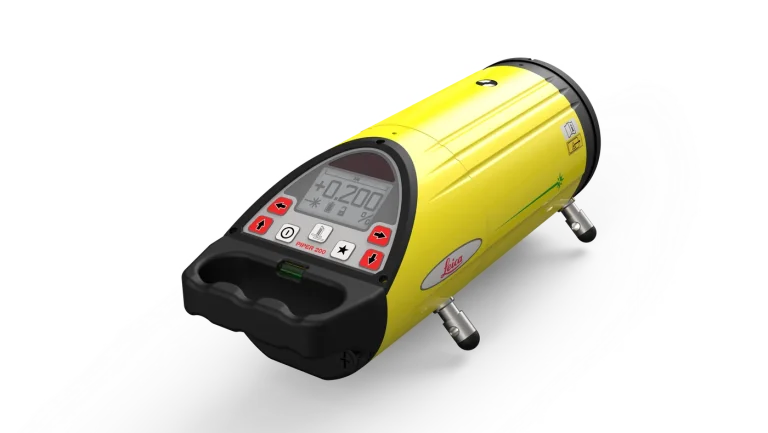

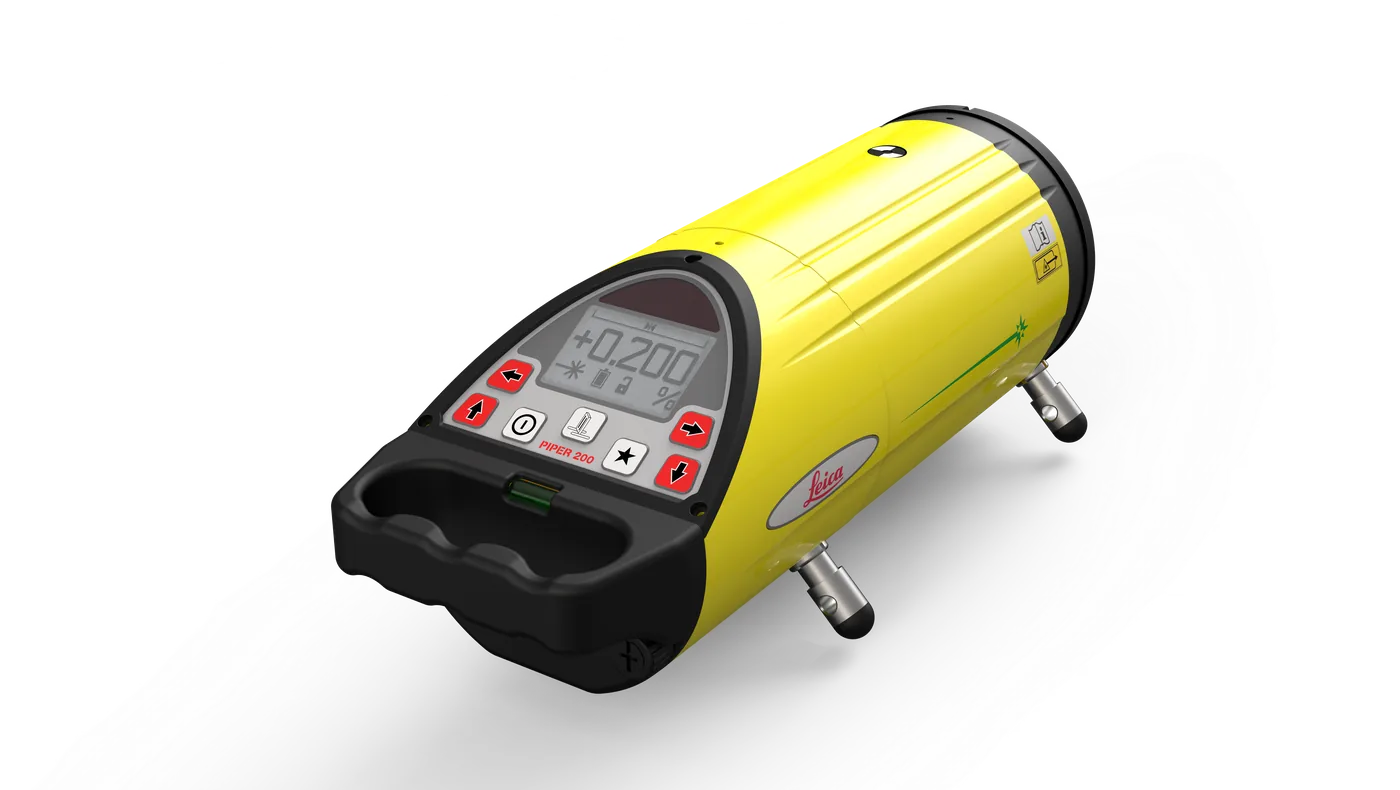

A compact yet powerful pipe laser that fits inside a 100 mm (4-inch) pipe, offering automatic self-levelling, robust durability, and your choice of red or high-visibility green beam for superior performance in sewer, drainage and pit setups.
Two Beam Options:
– Red Beam Version – Delivers proven accuracy with a 635 nm red laser diode, laser class 3R, up to 200 m (650 ft) working range, grade range of -10% to +25%, and self-levelling range up to -15% to +30%.
– Green Beam Version (Piper 200G) – Provides the same grade/line performance but with a 520 nm green laser diode and up to 4× better visibility than red in bright or wet environments ideal for sewer trenches, daylight pits or reflective conditions.
Which version to choose?
– Choose the Red Beam Piper 200 if your site is mostly subterranean, low ambient light, and you want proven performance.
– Choose the Green Beam Piper 200G if your work involves bright conditions, above-ground piping, manholes, or reflective environments the green beam improves visibility and accuracy under challenging lighting.
Key features
- Fits inside a 100 mm (4 in) pipe, making setup straightforward even in tight inverts or manholes.
- Automatic grade compensation with built-in self-levelling even when the housing is rolled up to ±3°.
- Robust remote-control functionality (up to 150 m / 500 ft) for precise line control and workflow efficiency.
- Rugged waterproof protection with cast-aluminium housing sealed to IP X8 for reliable performance in wet, harsh environments.
- Long battery runtime of up to 40 hours with fast 4-hour recharge for uninterrupted daily operation.
- At Geoxpert, we provide the Leica Piper 200 series fully configured, calibrated, and supported, including red or green beam options, accessories, training, and service coverage for confident, high-precision grade-and-line work.
